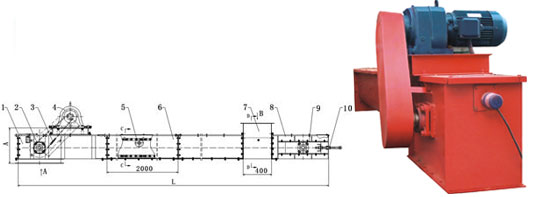

Name: TGSS Series Enmasse Drag Conveyor
Application : TGSS Series Enmasse Drag Conveyor is mainly used to convey various scattered materials in the grain, feed and oil industries.
Performance Features :
1. Simple structure, small size, good seal, large conveying quantity, little conveying material damage, low working noise, high conveying efficiency, etc.;
2. Having many points for material supplying and discharging, long conveying distance, etc.;
3. Adopting center-adjusting ball bearing with seat, easy assembling.
Technical characteristics :
Models Parameters | TGSS20 | TGSS25 | TGSS32 |
Groove width(mm) | 200 | 250 | 320 |
Chain node distance(mm) | 66.5 | 66.5 | 66.5 |
Type of Enmasse Drag | T shaped | T shaped | T shaped |
Line speed of Enmasse Drag(m/s) | 0.31 | 0.31 | 0.38 |
Capacity(t/h) | 15 | 25 | 35 |
