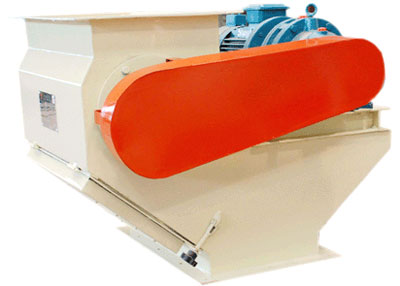

Name: TWLY Series Impeller Magnet Feeder Model: TWLY series
Application :
TWLY Series Impeller Magnet Feeder can be separated into two types including common type and pneumatic type. It can be mainly used for quantitative uniform feeding of various pellet feed mill, and it can be adjusted the feeding quantity by non-class in the larger range as required, it has strong magnetic effect on the materials, to ensure the hammer mill working safely and efficiently.
Model | Impeller diameter(mm) | Capacity(t/h) | Power(Kw) |
TWLY16×36 | 160 | 0.45—10 | 1.1 |
TWLY20×30 | 200 | 3.5—18 | 1.5 |
TWLY20×40 | 200 | 3.5—20 | 1.5 |
TWLY20×50 | 200 | 3.5—25 | 1.5 |
TWLY20×60 | 200 | 3.5—30 | 2.2 |
TWLY25×40 | 250 | 7.5—39 | 1.5 |
TWLY25×50 | 250 | 9.5—49 | 1.5 |
TWLY25×60 | 250 | 11—61 | 2.2 |
