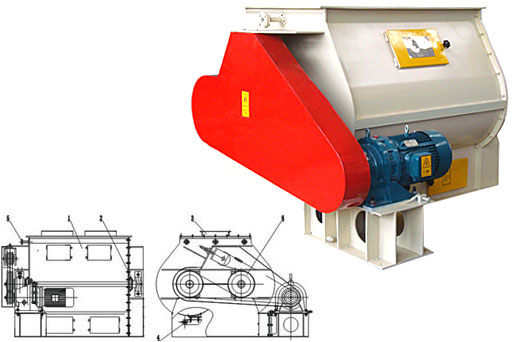

Name: SSHJ Series Double Shafted Paddle Mixer
Application : SSHJ Series Double Shafted Paddle Mixer is widely used to mix flour, granular, and slice, irregular and slimy materials in the feed, grain, chemical, pharmaceutical industries.
Performance Features :
1. The mixing homogeneity CV≤5% within 50~90 seconds;
2. Large loading changeable range: the coefficient of the loading changeable range is 0.3~0.8;
3. No segregation: within one minute after mixing uniformity, no grading phenomenon happens and no segregation caused by the difference of weight, size, etc;
4. Fast discharging and little residue: the bottom is four-leaf opening structure;
5. Large number of liquid additives: even if 30% liquid is added, materials can still be mixed uniformly.
Technical characteristics :
Parameters Models | Volume (m3) | Capacity (kg) | Mixing time(s) | Mixing homogeneity (CV≦%) | Power (kw) | Weight (kg) |
SSHJ6 | 6 | 3000 | 50~90 | 5 | 45 | 8780 |
SSHJ4 | 4 | 2000 | 5 | 30 | 5960 | |
SSHJ2 | 2 | 1000 | 5 | 18.5 | 4620 | |
SSHJ1 | 1 | 500 | 5 | 11 | 3510 | |
SSHJ0.5 | 0.5 | 250 | 5 | 5.5 | 1500 | |
SSHJ0.3 | 0.3 | 150 | 5 | 3 | 1000 |
