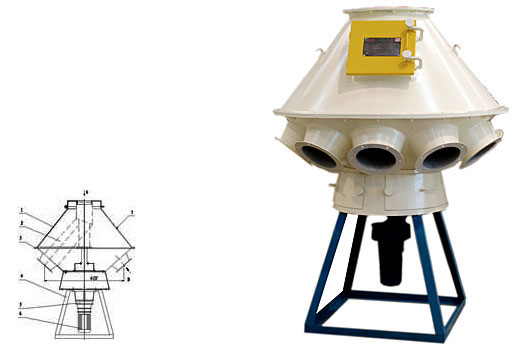

Name: TFPX Series Rotary Distributor
Application :
TFPX Series Rotary Distributor is a transportation device, which usually allots materials of different needs to different places and storage warehouses and is suitable to be used in feed processing plants, food processing plants or cylinder working towers, etc.
Performance Features :
1, Compact structure, simple operation, easy installation;
2, Slow rotation of material-receiving guide syphon, proper positioning by the trip switch and the positioning slot, and good sealing performance.
Technical characteristics :
| Parameters Models | Outlet or inlet diameter （mm） | Number of outlet | Capacity(t/h) | Rotate speed of siphon(rpm) | Power(kw) |
| TFPX22×4 | φ220 | 4 | 40~60 | 5 | 0.37 |
| TFPX22×6 | φ220 | 6 | 40~60 | 5 | 0.37 |
| TFPX22×8 | φ220 | 8 | 40~60 | 5 | 0.37 |
| TFPX22×10 | φ220 | 110 | 40~60 | 5 | 0.37 |
| TFPX22×12 | φ220 | 12 | 40~60 | 5 | 0.37 |
| TFPX22×16 | φ220 | 16 | 40~60 | 5 | 0.55 |
