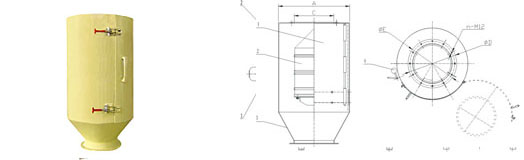

Name: TCXT Series Magnet Canister
Application : TCXT Series Magnet Canister is mainly used to remove magnetic metals in raw materials, suitable for feed factories, grain processing factories, chemical factories, fertilizer factories, impregnant factories and brewing factories.
Performance Features :
1, The magnetic core adopts a newly developed rare earth magnet and has 5~8 years life expectancy;
2, Reasonable structure, high metal removing efficiency and no power consumption.
Technical Characteristics
Technical characteristics :
| Models Parameters | TCXT12 | TCXT15 | TCXT20 | TCXT25 | TCXT30 |
| Capacity（t/h） | 6～8 | 8～12 | 15～25 | 30～50 | 45～70 |
| Diameter of magnet (mm) | φ120 | φ150 | φ200 | φ250 | φ300 |
| Diameter of canister(mm) | φ260 | φ300 | φ400 | φ480 | φ540 |
| Intensity of magnetic field(GS) | ≥3000 | ||||
| Air intake quantity (m3/min) |
≥99％ | ||||
| Weight (kg) | 30 | 50 | 80 | 110 | 160 |
